The Story

Diamond Pad Eye - Round - 60mm Length (2-23/64") - M5 Screw

Features:

Mechanical resistance versus corrosion resistance ratio
Optimized dimensions
For M5 screw

Applications:

Mast foot blocks
Reefing blocks
Various fastenings

Specifications:

Materials: Duplex stainless steel grade
Working Load: (lb) 2645.5 / (kg) 1200
Breaking Load: (lb) 7054.7 / (kg) 3200
Weight: (lb) 0.13 / (g) 59
W.L 1 (90 degrees): (lb) 2645.5 / (kg) 1200
W.L 2 (45 degrees): (lb) 2425 / (kg) 1100
W.L 3 (0 degrees): (lb) 2425 / (kg) 1100
B.L 1 (90 degrees): (lb) 7054.7 / (kg) 3200
B.L 2 (45 degrees): (lb) 6613.8 / (kg) 3000
B.L 3 (0 degrees): (lb) 6613.8 / (kg) 3000

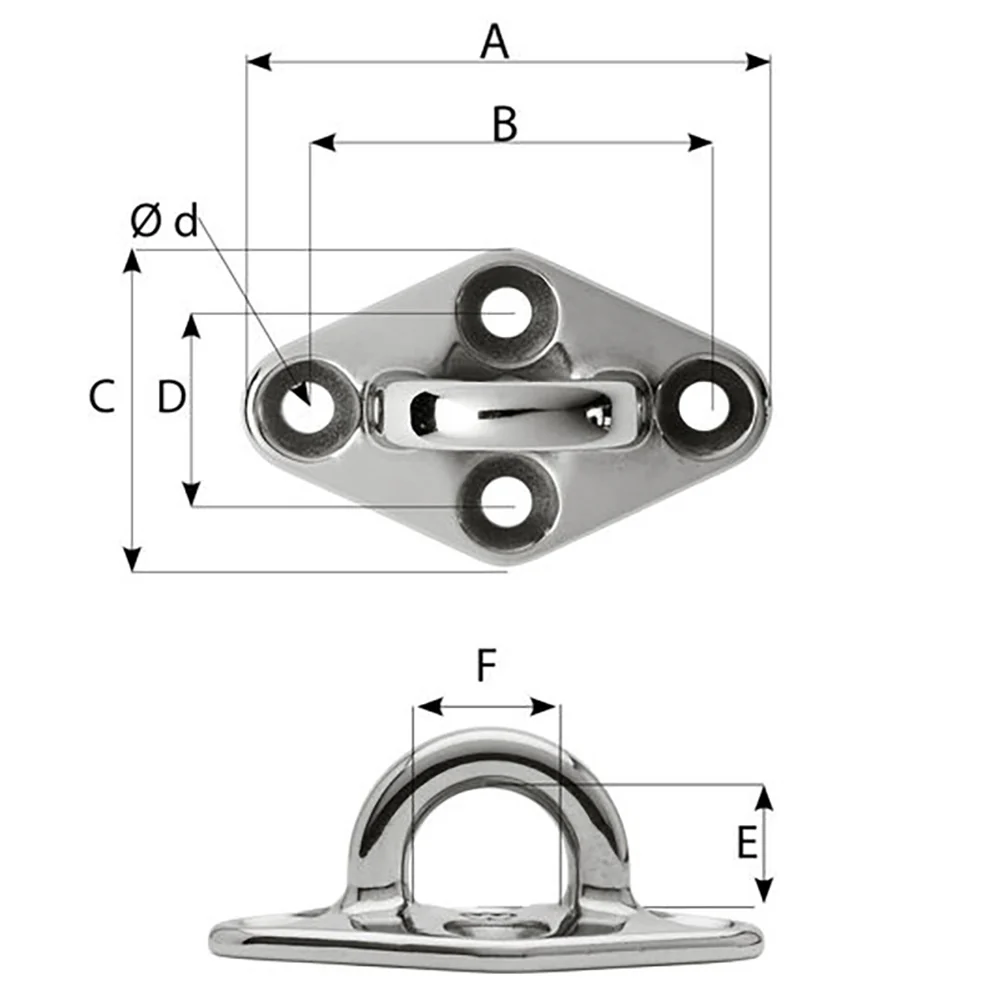

Dimensions:

A: (inch) 2 23/64" / (mm) 60
B: (inch) 1 13/16" / (mm) 46
C: (inch) 1 1/2" / (mm) 38
D: (inch) 15/16" / (mm) 24
E: (inch) 37/64" / (mm) 14.5
F: (inch) 3/4" / (mm) 19

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
