UFlex Power A EM11 Electronic Control Package - Single Engine/Single Station - Electronic Throttle/Mechanical Shift [EM11]

Power A EM11 - Electronic Control Package

Single Engine/Single Station - Electronic Throttle/MechanicalShift

Power A Mark II™ Electronics Control Systems

• Private Protocol can bus for data transmission
• Connection of multiple stations up to 4 controls
• Modular System
• Direct communication w/electronic engines (SAE J 1939 or NMEA 2000)
• Plug'N Play connectivity
• Automatic engines synchronization
• Dock Assist
• Fully programmable shift delays

EM11 Package Includes:

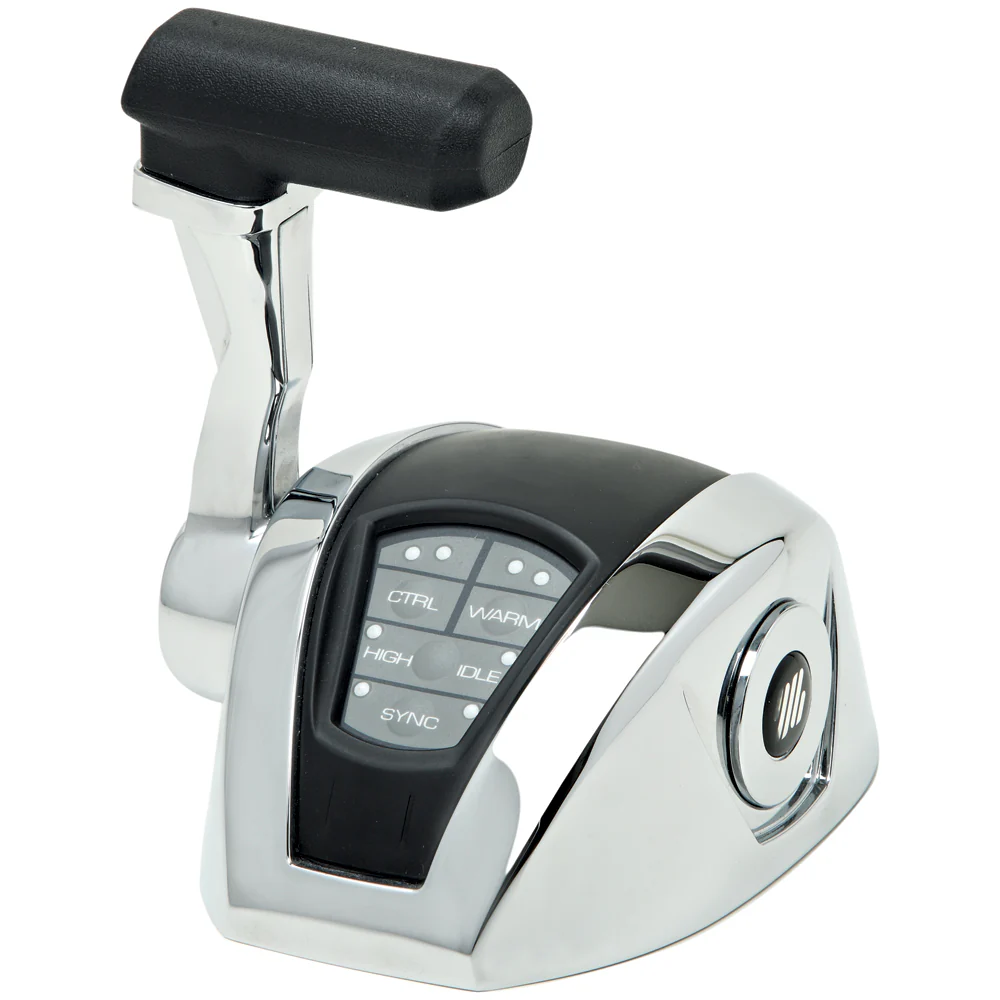

• 42009G - (1) PA2-B1 - Single Lever Control w/o Trim
• 42017F - (1) PA2-CU - Control Unit w/LED Diagnostic & Programming Screen
• 42018H - (1) PA2-VT - V-Throttle f/0-5V Interface
• 42027J - (1) PA2-MA - Electro-Mechanical Actuator f/Shift and/or Throttle
• 42028L - (1) PA2-NT - Network Terminator
• 42029N - (1) T-VT2 - Universal V-Throttle Cable 6.5'
• 42053K - (1) M-P3 - Main Power Supply Cable, 9.8'
• 71021K - (1) CAN-10 - Network Connection Cable 33'
• 73639T - (2) CAN-1 - Network Connection Cable 3'
