The Story

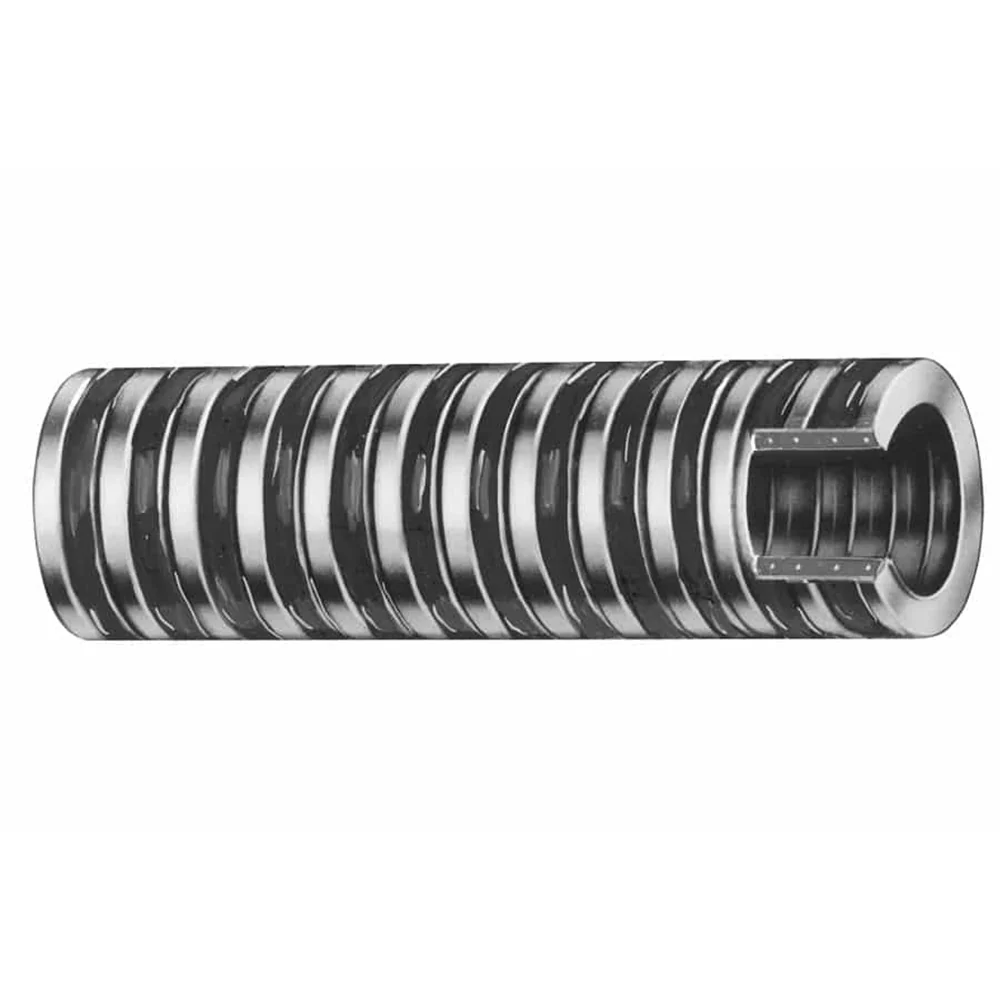

1-1/8" Heavy Duty PVC Bilge & Livewell Hose (FDA) - Clear with Black Helix - Sold by the Foot
Trident Smooth extra heavy wall vinyl (FDA) well hose. All clear (see thru) with black helix. Excellent durability, flexibility & bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs are required.
Features:
- Sold by the foot
- Flexible, but the 147 series is less flexible than the 149 series of hoses
Application:
- Bilge and live well hose
Specifications:
- Tube & Cover: Clear vinyl reinforced with black helix
- Color: Clear with black helix
- Reinforcement: PVC Helix
- Temperature Range: 10°F-120°F (-12°C-49°C)
- Inner Diameter: (inch) 1-1/8" / (mm) 28.6
- Outer Diameter: (inch) 1.39" / (mm) 35.4
- Working Pressure: (Psi Vac In./Hg) 28
- Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.45
- Bend Radius: (inch) 3.5" / (mm) 8.9
*Burst Pressure is 4 x Working Pressure
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Specifications:
- ID Diameter (inches): 1-1/8"
- Length (Feet): Sold By The Foot
- Box Dimensions: 2"H x 2"W x 2"L WT: 0.28 lbs
Quick Guide (pdf)
