The Story

Product Description

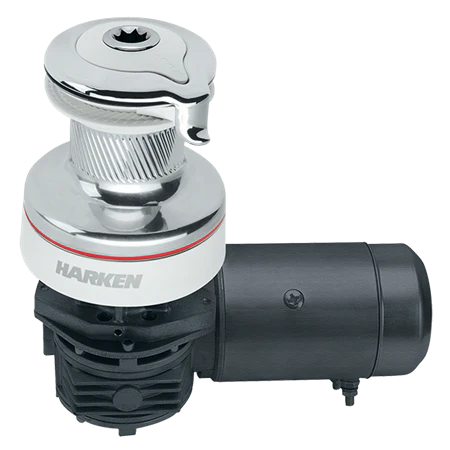

Harken #35 2 Speed Electric Self-Tailing Radial Winch - Chrome with White Trim

Specifications:

  • Line Entry Height (LE) - 3 1/8in (79mm)

  • Fastener Circle - 4 7/8in (123mm)

  • Fasteners (SH or HH) - 1/4 SH  (6 HH, 6 SH)

  • Weight - 32.8 lbs (14.9kg)

    Gear & Power Ratio:

  • Gear 1 - 2.13

  • Gear 2 - 5.65

  • Power Ratio 1 - 13.50

  • Power Ratio 2 - 35.90

  • Power in watts - 700 Watts

    Wire Gauges:

    Boat Size Under - 16.4ft (5m) - 2 AWG (32mm2)

    Boat Size - 16.4 (5m) to 32.8 (10m) - 0 AWG (50mm2)

    Boat Size - 32.8 (10m) to 49.2ft (15m) - 00AWG (70mm2)

    Boat Size - 49.2 (15m) to 65.6ft (20m) - 000AWG (95mm2)

    Dimensions:

    E - 1 3/4in (43mm)

    F - 6 1/8in (155mm)

    G - 8 7/8in (227mm)


    • Each electric winch requires one control box, one circuit breaker, and two analog switches or one Digital System Switch. All new electric Radial and Performa electric winches are supplied with the appropriate dual-function control box. For replacement or retrofit control boxes, contact Harken.

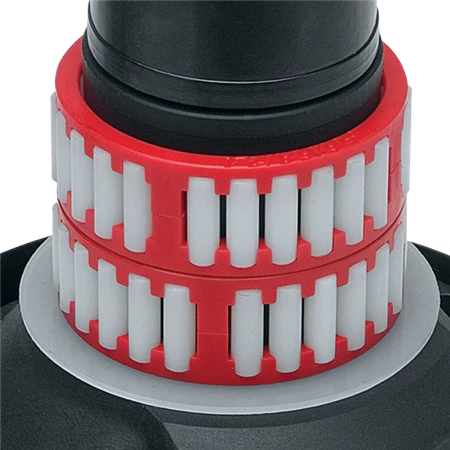

    Harken #35 2 Speed Electric Self-Tailing Radial Winch - Chrome with White Trim - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

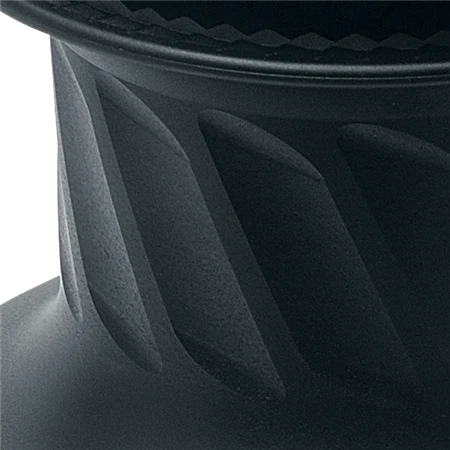

    Harken #35 2 Speed Electric Self-Tailing Radial Winch - Chrome with White Trim - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    Product Description

    Harken #35 2 Speed Electric Self-Tailing Radial Winch - Chrome with White Trim

    Specifications:

  • Line Entry Height (LE) - 3 1/8in (79mm)

  • Fastener Circle - 4 7/8in (123mm)

  • Fasteners (SH or HH) - 1/4 SH  (6 HH, 6 SH)

  • Weight - 32.8 lbs (14.9kg)

    Gear & Power Ratio:

  • Gear 1 - 2.13

  • Gear 2 - 5.65

  • Power Ratio 1 - 13.50

  • Power Ratio 2 - 35.90

  • Power in watts - 700 Watts

    Wire Gauges:

    Boat Size Under - 16.4ft (5m) - 2 AWG (32mm2)

    Boat Size - 16.4 (5m) to 32.8 (10m) - 0 AWG (50mm2)

    Boat Size - 32.8 (10m) to 49.2ft (15m) - 00AWG (70mm2)

    Boat Size - 49.2 (15m) to 65.6ft (20m) - 000AWG (95mm2)

    Dimensions:

    E - 1 3/4in (43mm)

    F - 6 1/8in (155mm)

    G - 8 7/8in (227mm)


    • Each electric winch requires one control box, one circuit breaker, and two analog switches or one Digital System Switch. All new electric Radial and Performa electric winches are supplied with the appropriate dual-function control box. For replacement or retrofit control boxes, contact Harken.
